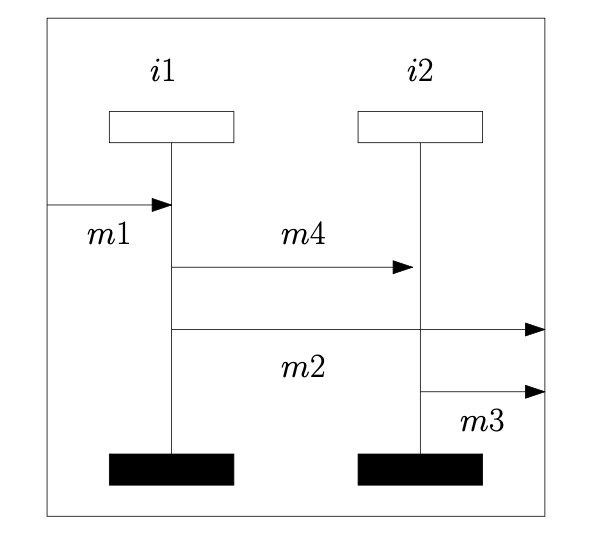

Hi, consider the following message sequence chart. Please identify the events in this MSC.

In a Message Sequence Chart (MSC), the basic events are usually the sending and receiving of messages.

From the diagram, there are two instances/lifelines:

• i1

• i2

and four messages:

• m1

• m2

• m3

• m4

1) Events present in the diagram

Each message corresponds to two events:

Message m1

• send(m1): from the left environment/boundary

• receive(m1): at instance i1

Message m4

• send(m4): from i1

• receive(m4): at i2

Message m2

• send(m2): from i1

• receive(m2): at the right environment/boundary

Message m3

• send(m3): from i2

• receive(m3): at the right environment/boundary

2) Event list

A complete event set is therefore:

E = {s(m1), r(m1), s(m4), r(m4), s(m2), r(m2), s(m3), r(m3)}

where:

• s(m)= send event of message m

• r(m)= receive event of message m

3) Ordering of events on each instance

From top to bottom on each lifeline:

On i1

1. receive(m1)

2. send(m4)

3. send(m2)

So:

r(m1) < s(m4) < s(m2)

On i2

1. receive(m4)

2. send(m3)

So:

r(m4) < s(m3)

On the environment/boundary

• Left boundary: send(m1)

• Right boundary: receive(m2) occurs above receive(m3), so visually:

r(m2) < r(m3)

4) If you want the events named explicitly

You could name them as:

• e₁ = s(m1)

• e₂ = r(m1)

• e₃ = s(m4)

• e₄ = r(m4)

• e₅ = s(m2)

• e₆ = r(m2)

• e₇ = s(m3)

• e₈ = r(m3)

If you want, I can also turn this into the partial order / Hasse diagram of the MSC events.

(inconsistent with event list of the other MSCs analysed by the same model).

Question:

What is the correct ordering between receiving m1 and sending m4?

The correct ordering is:

$$receive(m1)\text{\:\,} < \text{\:\,}send(m4)$$

Why?

On lifeline i1, events are ordered top to bottom in an MSC.
In the diagram:

1. m1is received by i1first (arrow from the left boundary into i1)

2. Then m4is sent from i1to i2

So the receive event of m1must occur before the send event of m4.

In words

Receiving m1precedes sending m4.

If you want, I can also give the full partial order of all events in the MSC.

Question:

Based on the diagram above, generate a message sequence chart in which message m4 is abstracted away. Please produce the resulting MSC after abstracting from m4.

After abstracting away message m4, the visible messages are:

• m1: environment  → i1

• m2: i1→environment

• m3: i2→environment

1) Event set after abstraction

We remove the two m4-events:

• send(m4)

• receive(m4)

So the remaining events are:

E^′ = s(m1), r(m1), s(m2), r(m2), s(m3), r(m3)

2) Ordering that remains after hiding m4

From the original chart:

• On i1:

r(m1) < s(m4) < s(m2)

• On i2:

r(m4) < s(m3)

• Message causality for m4:

s(m4) < r(m4)

Therefore, after removing m4, the induced ordering between the remaining visible events includes:

r(m1) < s(m2)

and also, by transitivity through the hidden message m4,

r(m1) < s(m3)

So the abstracted partial order is:

s(m1) < r(m1) < s(m2) < r(m2)

s(m1) < r(m1) < s(m3) < r(m3)

with no ordering forced between s(m2)and s(m3).

3) Resulting abstracted MSC (semantic view)

A compact way to present the result is:

environment        i1                 i2               environment

     |             |                  |                     |

     | --- m1 ---> |                  |                     |

     |             |                  |                     |

     |             | --- m2 ------------------------------> |

     |             |                  |                     |

     |             |                  | --- m3 -----------> |

     |             |                  |                     |

4) Important subtlety

There is one important theoretical point:

• In the original MSC, m4was the only thing that transmitted causality from i1to i2.

• After hiding m4, the dependency

r(m1) < s(m3)

still exists semantically.

• But a plain basic MSC drawing with only m1, m2, m3does not explicitly show that dependency, because there is no visible interaction left between i1and i2.

So:

If you want the visible chart only

the diagram above is the expected abstraction.

If you want the exact semantic abstraction

then the result is really the partial order:

s(m1) < r(m1) < s(m2) < r(m2)

r(m1) < s(m3) < r(m3)

which is stronger than what an ordinary bMSC picture can directly express without adding some extra notation.

5) Final answer

The MSC after abstracting from m4is the one containing only m1, m2, and m3:

• m1received by i1

• m2sent from i1to the environment

• m3sent from i2to the environment

with the inherited causal constraint:

r(m1) < s(m2), r(m1) < s(m3)

If you want, I can also draw the abstracted MSC as a neat LaTeX/TikZ diagram or as a formal pomset.

Please produce an image of MSC.

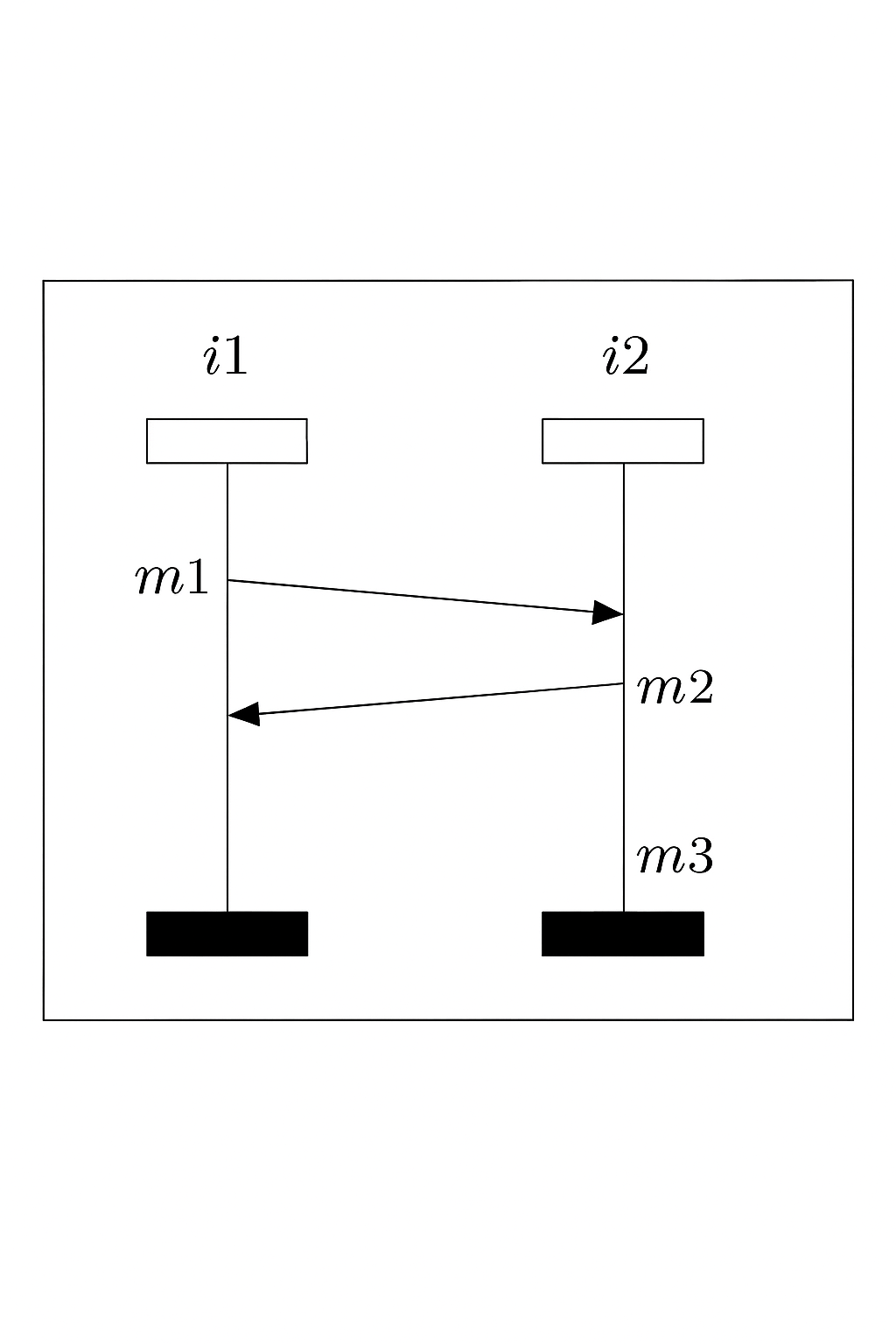

Question:

What is the order between receiving m1 and sending m3 in the resulting MSC in which m4 is abstracted away.

In the abstracted result (where m4is hidden/abstracted away semantically), the ordering is:

$$receive(m1)\text{\:\,} < \text{\:\,}send(m3)$$

Why?

In the original MSC, the following chain holds:

$$receive(m1)\text{\:\,} < \text{\:\,}send(m4)\text{\:\,} < \text{\:\,}receive(m4)\text{\:\,} < \text{\:\,}send(m3)$$

So by transitivity:

$$receive(m1)\text{\:\,} < \text{\:\,}send(m3)$$

Important nuance

There are two ways people sometimes talk about “abstracting away m4”:

1. Semantic abstraction / hiding

You remove m4as a visible message but preserve the causal dependencies it induced.

Then the correct relation is:

r(m1) < s(m3)

2. Just erasing m4from the picture

If you literally delete the m4arrow from the drawing and keep only visible arrows, then a basic MSC picture may no longer explicitly show any dependency between i1and i2.

So syntactically, the order may become not directly expressible in the reduced picture.

Final answer

If you mean the proper abstraction of the original MSC, then:

$$\boxed{receive(m1)\text{\:\,} < \text{\:\,}send(m3)}$$

So receiving m1must happen before sending m3.

If you want, I can also write the full partial order of the abstracted MSC in formal notation.

Question:

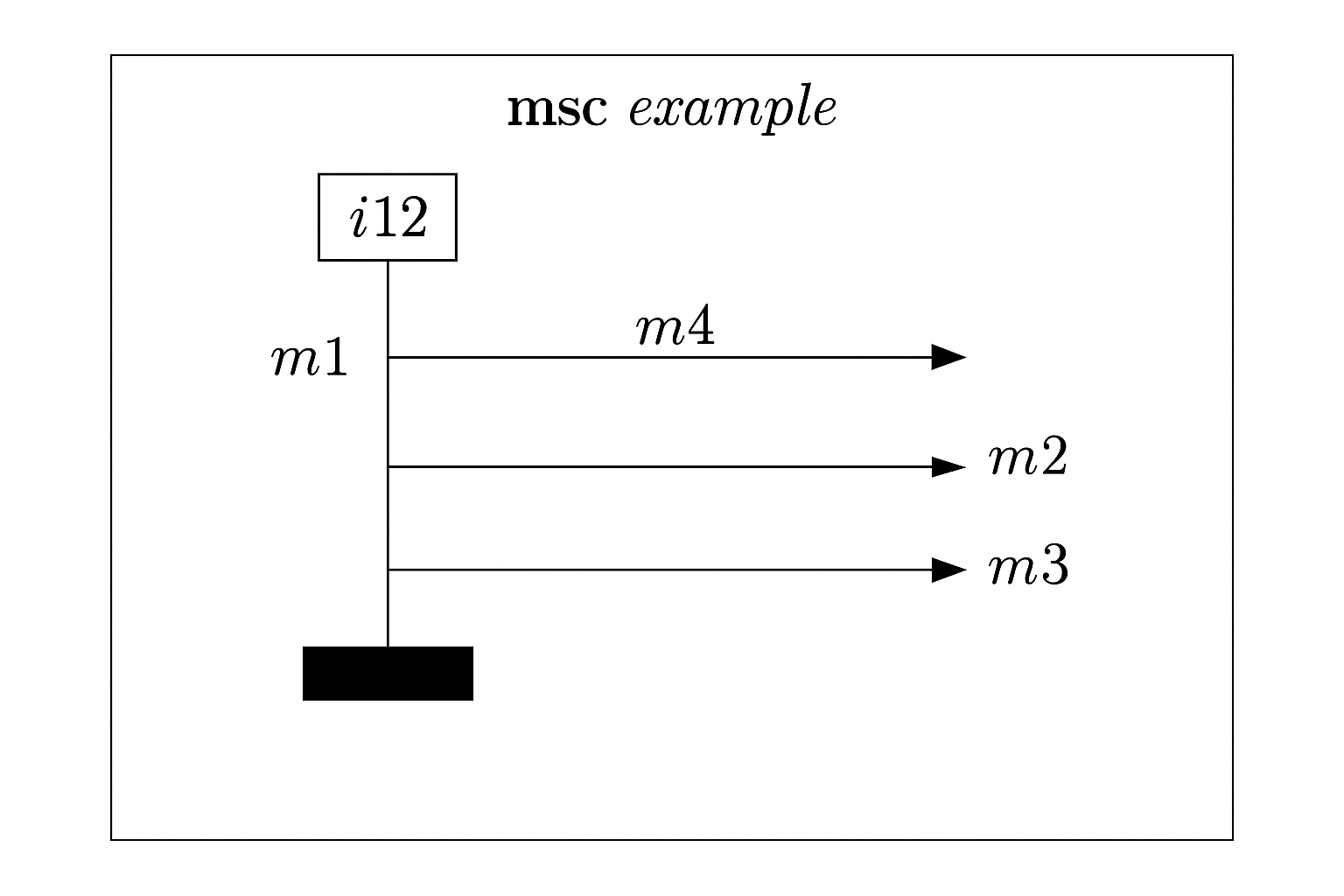

Consider the original MSC given below. Merge instance i1 and i2; produce the message sequence chart after merging.

After merging instances i1and i2into one instance, say i_12, the resulting MSC has:

• one merged instance i_12

• the environment on the left/right boundary as before

• m1still entering from the left boundary to i_12

• m2still going from i_12to the right boundary

• m3still going from i_12to the right boundary

• m4becomes an internal communication inside the merged instance i_12

1) Read the original MSC carefully

From the original diagram:

• m1: environment  → i1

• m4: i1 → i2

• m2: i1→environment

• m3: i2→environment

Local orders on the two lifelines are:

On i1

r(m1) < s(m4) < s(m2)

On i2

r(m4) < s(m3)

And message causality for m4:

s(m4) < r(m4)

So altogether:

r(m1) < s(m4) < r(m4) < s(m3)

and

s(m4) < s(m2)

Notice an important point:

• there is no forced order between s(m2)and r(m4)

So after merging, those two events remain concurrent / unordered unless one chooses a particular linearization.

2) Result after merging i1and i2

Let the merged instance be called i_12.

The events on i_12are now:

• receive m1

• send m4(internal)

• receive m4(internal)

• send m2

• send m3

with ordering constraints:

r(m1) < s(m4)

s(m4) < r(m4)

s(m4) < s(m2)

r(m4) < s(m3)

Equivalently:

r(m1) < s(m4)<,r(m4),,s(m2),

with

r(m4) < s(m3)

and no order between s(m2)and r(m4).

3) The merged MSC (semantic form)

A precise way to show the merged chart is:

left env            i12                           right env

   |                 |                                 |

   | ---- m1 ------> |                                 |

   |                 |                                 |

   |                 | -- m4 (internal send) --&nbsp;      |

   |                 | <- m4 (internal recv) ---/      |

   |                 |                                 |

   |                 | ---- m2 ----------------------> |

   |                 |                                 |

   |                 | ---- m3 ----------------------> |

   |                 |                                 |

But this picture alone may accidentally suggest a total order.
The exact merged semantics is:

• m4is now internal to i_12

• m2is enabled after s(m4)

• m3is enabled after r(m4)

• s(m2)and r(m4)are not ordered

4) Best MSC-style representation

If you want the most faithful MSC after merging, then the merged lifeline should use a co-region (or some notation for unordered events) after s(m4):

left env              i12                              right env

   |                   |                                   |

   | ---- m1 ------->  |                                   |

   |                   |                                   |

   |                   | -- m4 (internal send) --&nbsp;        |

   |                   |                                   |

   |                   |   [ co-region:                   |

   |                   |      recv(m4)   ||   send(m2) ]  |

   |                   |                                   |

   |                   | -------- m3 --------------------> |

   |                   |                                   |

This means:

• first m1is received,

• then the internal send of m4,

• then receive(m4) and send(m2) are unordered,

• and finally m3is sent after receive(m4).

5) Final answer

Resulting MSC after merging i1and i2:

• instances: i_12only (instead of separate i1and i2)

• visible external messages:

  • m1: environment  → i_12

  • m2: i_12→environment

  • m3: i_12→environment

• internal message:

  • m4: becomes an internal/self communication of i_12

Exact ordering constraints:

r(m1) < s(m4), s(m4) < r(m4), s(m4) < s(m2), r(m4) < s(m3)

with

$$\boxed{\text{(s(m2))~and~(r(m4))~are~unordered}}$$

If you want, I can also draw the merged MSC as a clean image in the same style as the original figure.

Question:

Consider the original MSC given below. Please produce the set of all of its traces.

To compute all traces of the MSC, I treat a trace as a linearization of the partial order of events in the chart.

1) Events in the original MSC

From the diagram, the events are:

• s(m1): send m1from the left environment

• r(m1): receive m1at i1

• s(m4): send m4from i1

• r(m4): receive m4at i2

• s(m2): send m2from i1to the right environment

• r(m2): receive m2at the right boundary

• s(m3): send m3from i2to the right environment

• r(m3): receive m3at the right boundary

2) Partial-order constraints

Reading the two lifelines top-to-bottom gives:

On i1

r(m1) < s(m4) < s(m2)

On i2

r(m4) < s(m3)

Message causality

s(m1) < r(m1), s(m4) < r(m4), s(m2) < r(m2), s(m3) < r(m3)

So altogether:

s(m1) < r(m1) < s(m4)

s(m4) < r(m4) < s(m3) < r(m3)

s(m4) < s(m2) < r(m2)

3) Set of all traces

There is one subtle ambiguity:

• If the right boundary is treated as imposing an order top-to-bottom, then r(m2) < r(m3).

• If the right boundary is treated as just “the environment” with no local ordering, then r(m2)and r(m3)are unordered unless forced by other constraints.

So I will give both versions.

A. Traces without imposing an order on the right boundary

Then the MSC has 10 traces.

Using shorthand:

• s1 = s(m1)

• r1 = r(m1)

• s4 = s(m4)

• r4 = r(m4)

• s2 = s(m2)

• r2 = r(m2)

• s3 = s(m3)

• r3 = r(m3)

the set of traces is:

{⟨s1, r1, s4, r4, s2, r2, s3, r3⟩,

⟨s1, r1, s4, r4, s2, s3, r2, r3⟩,

⟨s1, r1, s4, r4, s2, s3, r3, r2⟩,

⟨s1, r1, s4, r4, s3, r3, s2, r2⟩,

⟨s1, r1, s4, r4, s3, s2, r2, r3⟩,

⟨s1, r1, s4, r4, s3, s2, r3, r2⟩,

⟨s1, r1, s4, s2, r2, r4, s3, r3⟩,

⟨s1, r1, s4, s2, r4, r2, s3, r3⟩,

⟨s1, r1, s4, s2, r4, s3, r2, r3⟩,

⟨s1, r1, s4, s2, r4, s3, r3, r2⟩}

B. Traces with right-boundary order r(m2) < r(m3)

If you also impose the visual top-to-bottom order on the right boundary, then the set reduces to 6 traces:

{⟨s1, r1, s4, r4, s2, r2, s3, r3⟩,

⟨s1, r1, s4, r4, s2, s3, r2, r3⟩,

⟨s1, r1, s4, r4, s3, s2, r2, r3⟩,

⟨s1, r1, s4, s2, r2, r4, s3, r3⟩,

⟨s1, r1, s4, s2, r4, r2, s3, r3⟩,

⟨s1, r1, s4, s2, r4, s3, r2, r3⟩}

4) Final answer

If your course/textbook treats only the instance lifelines i1and i2as ordered objects, then the correct set is the 10 traces above.

If your course/textbook also treats the right boundary/environment events as ordered top-to-bottom, then the correct set is the 6 traces above.

Most common interpretation for this kind of question

For the MSC as drawn, the safest formal answer is usually:

$$\boxed{\text{all~linearizations~of~the~partial~order~induced~by~}i1,i2\text{~and~message~causality}}$$

which gives the 10 traces listed in part A.

If you want, I can also present the same answer in:

1. message notation such as !m1 ?m1 !m4 ?m4 ..., or

2. as a Hasse diagram / pomset of the MSC.

Question:

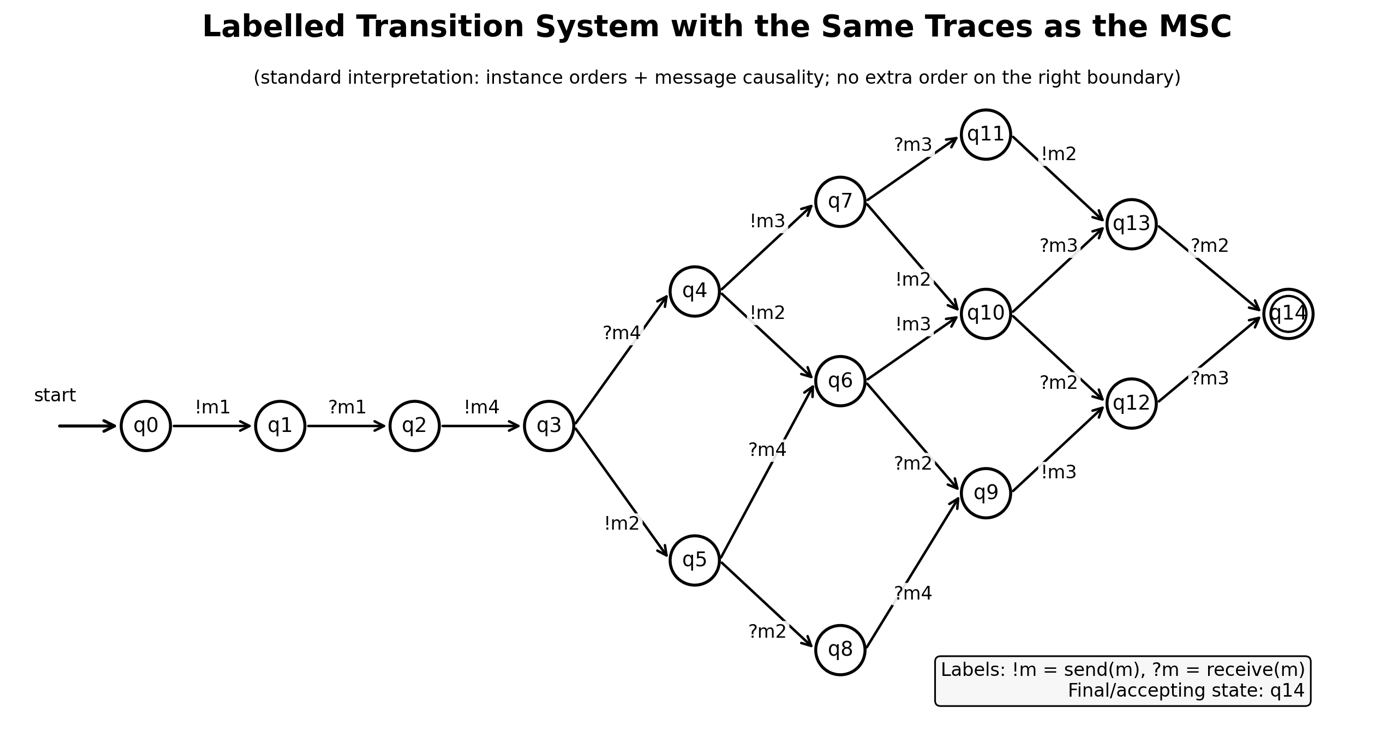

Please draw a labelled transition system that has the same traces as the MSC. Please produce one static picture, no interactive visualisation.

Below is a static labelled transition system (LTS) whose traces are the same as the MSC, using the event labels

• !m= send of message m

• ?m= receive of message m

and using the standard interpretation from our earlier discussion (instance orders + message causality, without adding an extra order on the right boundary).

Notes

• Start state: q0

• Accepting/final state: q14(double circle)

• This LTS accepts exactly the linearizations of the MSC partial order that we previously listed.

If you want, I can also produce:

1. a smaller/minimized LTS, or

2. the alternative LTS for the interpretation where the right-boundary receives are ordered $\text{\:\,}r(m2) < r(m3)\text{\:\,}$.
